Uniarch IPC-B113-PF40 Outdoor IP Security Camera 4 MP
13% Off- Status: Stock In
Day/night functionality Smart IR, up to 30m (98ft) IR distance Optical glass window, IP67 Higher light transmittance IR anti-reflection window 2D/3D DNR (Digital Noise Reduction) Warranty: 01 Year
-> ঢাকা সিটির বাহিরে হোম ডেলিভারি 150Tk
-> কুরিয়ার অফিস থেকে ডেলিভারি 120Tk
Product Description
Specification:
|
|
IPC-B124-PF28 |
IPC-B124-PF40 |
||||||
|
Camera |
||||||||
|
Sensor |
1/2.7", progressive scan, CMOS |
|||||||
|
Lens |
2.8mm@F2.1 |
4.0mm@F2.1 |
||||||
|
DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
|||
|
2.8 |
56.0 |
22.4 |
11.2 |
5.6 |
||||
|
4.0 |
80.0 |
32.0 |
16.0 |
8.0 |
||||
|
Angle of View (H) |
112.7° |
86.5° |
||||||
|
Angle of View (V) |
60.1° |
44.1° |
||||||
|
Angle of View (O) |
146.5° |
106.4° |
||||||
|
Adjustment angle |
Pan: 0° ~ 360° |
Tilt: 0° ~ 90° |
Rotate: 0° ~ 360° |
|||||
|
Shutter |
Auto/Manual, 1 ~ 1/100000s |
|||||||
|
Minimum Illumination |
Colour: 0.02Lux (F2.1, AGC ON) |
|||||||
|
Digital noise reduction |
2D/3D DNR |
|||||||
|
Day/Night |
IR-cut filter with auto switch (ICR) |
|||||||
|
S/N |
>52dB |
|||||||
|
IR Range |
Up to 30m (98ft) IR range |
|||||||
|
Defog |
Digital Defog |
|||||||
|
WDR |
DWDR |
|||||||
|
Video |
||||||||
|
Video Compression |
Ultra 265, H.265, H.264, MJPEG |
|||||||
|
H.264 code profile |
Baseline profile, Main Profile |
|||||||
|
Frame Rate |
Main Stream: 4MP (2560*1440), Max 20fps; 1080P (1920*1080), Max 20fps; |
|||||||
|
HLC |
Supported |
|||||||
|
BLC |
Supported |
|||||||
|
OSD |
Up to 4 OSDs |
|||||||
|
Privacy Mask |
Up to 4 areas |
|||||||
|
ROI |
Up to 2 areas |
|||||||
|
Motion Detection |
Up to 4 areas |
|||||||
|
Network |
||||||||
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS, RTMP |
|||||||
|
Compatible Integration |
ONVIF (Profile S, Profile T), API |
|||||||
|
Interface |
||||||||
|
Network |
10/100M Base-TX Ethernet |
|||||||
|
General |
||||||||
|
Power |
DC 12V±25%, PoE |
|||||||
|
Power consumption: Max 4.5W |
||||||||
|

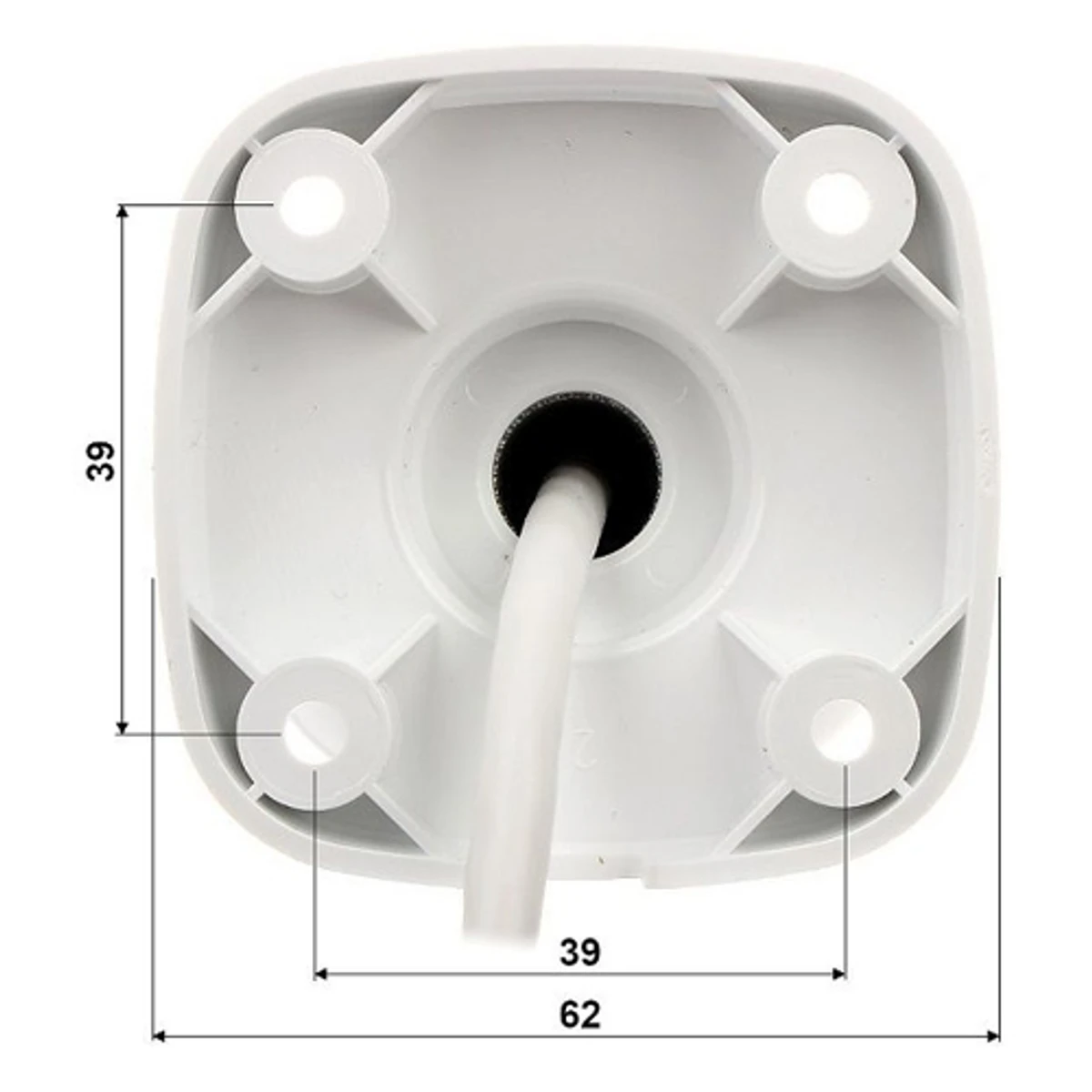

Dimensions (L × W × H) |
142.1 × 62.4 × 65.2mm (5.6” × 2.5” × 2.6”) |
|||||||
|
Weight |
0.19kg (0.42lb) |
|||||||
|
Working Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
|||||||
|
Ingress Protection |
IP67 |
|||||||
